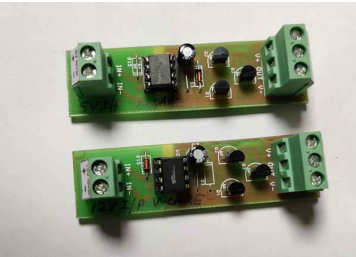

• Optical Isolation between Input & Output.
• One channel, compact
size.
• Low input current – less than 10mA.
• High speed operation up to 100KHz.
• Source type or sink type output – Factory set.
• Inputs Suitable for PLC and Micro-Controller based Applications.
• Din Rail Mounting.
These DC-to-DC isolators are designed to give ground isolation for digital inputs. The Applications include ground isolation between field signals and the controllers like RTU’s, NC and PLCs, level translation of input DC voltages and logic inversion. A range of products in this series come with different input voltages, provision for input indication and output simulation. The product is also available with RoHS compliant on request.
These DC-to-DC isolators are designed to give ground isolation for digital inputs. The Applications include ground isolation between field signals and the controllers like RTU’s, NC and PLCs, level translation of input DC voltages and logic inversion. A range of products in this series come with different input voltages, provision for input indication and output simulation. The product is also available with RoHS compliant on request.
These DC-to-DC isolators are designed to give ground isolation for digital inputs. The Applications include ground isolation between field signals and the controllers like RTU’s, NC and PLCs, level translation of input DC voltages and logic inversion. A range of products in this series come with different input voltages, provision for input indication and output simulation. The highlight of this product being, it can take as low as 0.5mA at the input and provide the output.
These DC-to-DC isolators are designed to give ground isolation for digital inputs. The Applications include ground isolation between field signals and the controllers like RTU’s, NC and PLCs, level translation of input DC voltages and logic inversion. A range of products in this series come with different input voltages, provision for input indication and optional output simulation. This module takes 24V level digital inputs and gives out optically isolated transistor output. The collector and emitter of the transistor are bought out and the user has the flexibility of connecting it source type or sink type. An indicating LED is provided at the opto-isolator input to indicate whether the input is present or not. With the use of these Opto-isolator boards, provides protection from the noise or high voltage entering to the user’s expensive RTU/FRTUs.

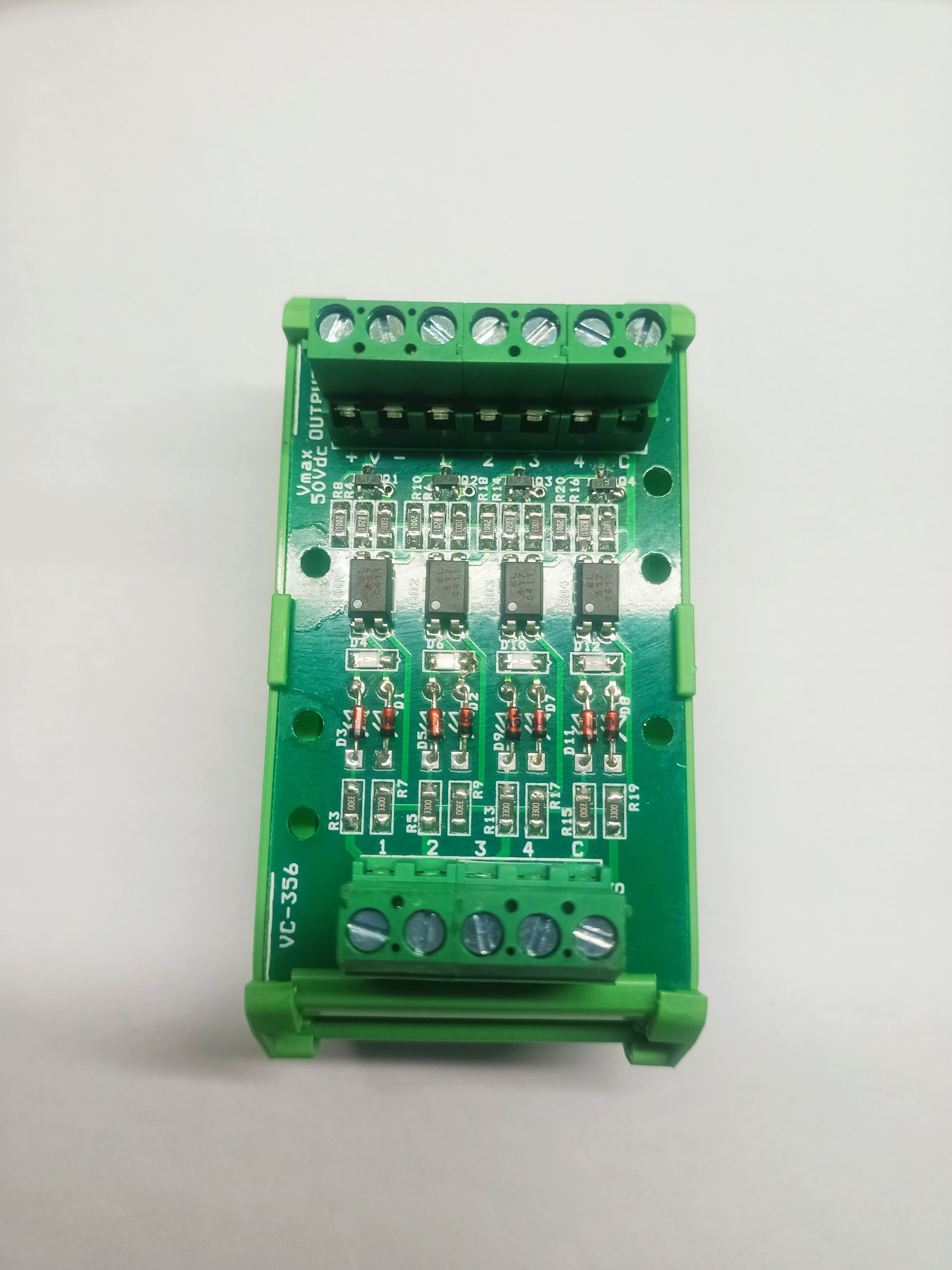

• Isolation Voltage of 5.3kVrms between Input and Output.
• 4 Channel, Ultra Compact size, board measures 72(H) x 44(W)mm
• DIN RAIL mounting
These DC-to-DC isolators are designed to give ground isolation for
digital inputs. Each 4-Channel module provides the optical isolation
between inputs and outputs and gives 24V-sourcing output**. This
model will not have input on indication LEDs because of the low
input voltage.. These units can also be used as isolated level
translators, where inputs and outputs will be of
different voltage levels.

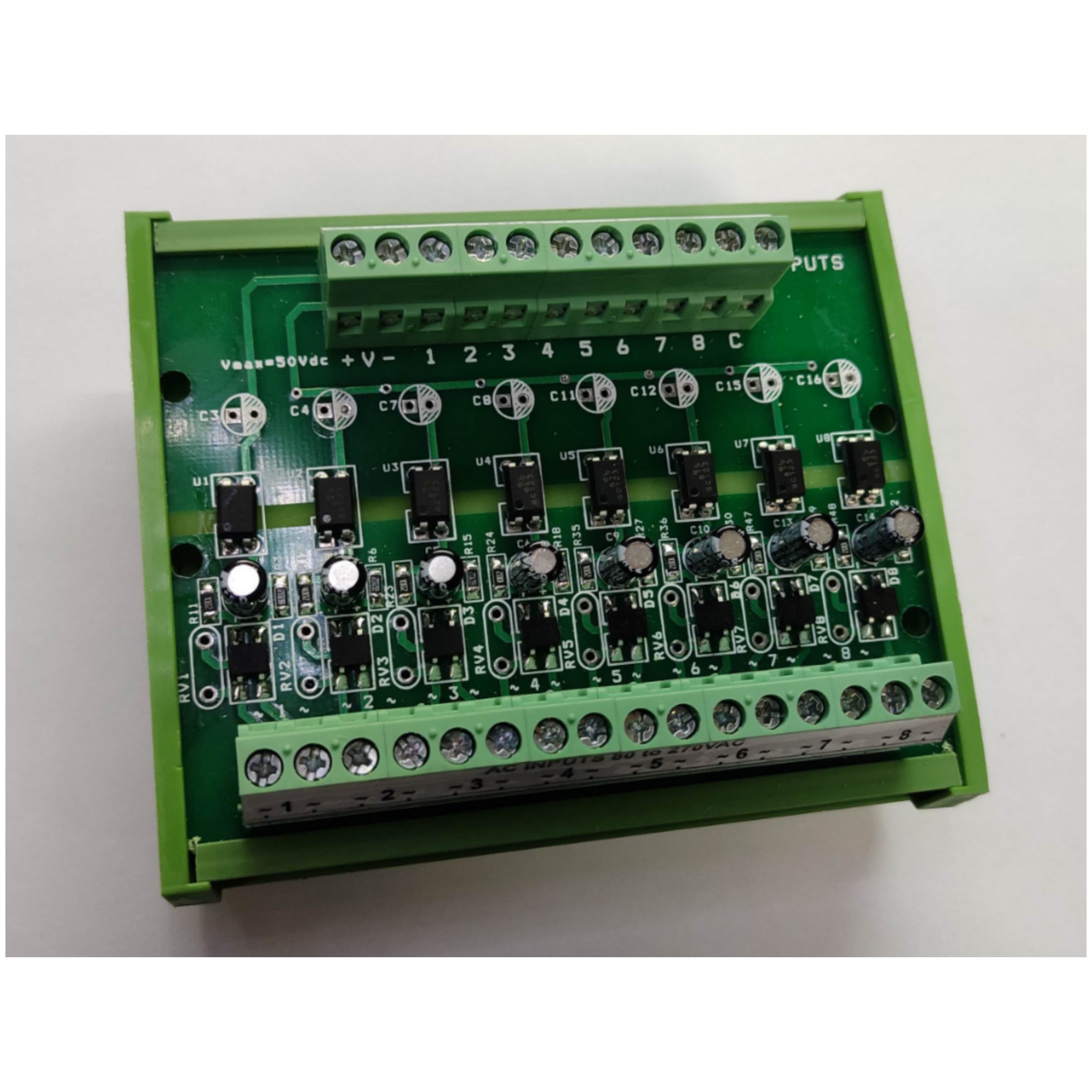

These AC to DC isolators are designed to give isolation for AC inputs. The module can be used to detect 230V/110V AC inputs from the field through 24V DC input signals of PLC. Each channel in the module provides the optical isolation between inputs and outputs and gives 24V-sourcing output.
